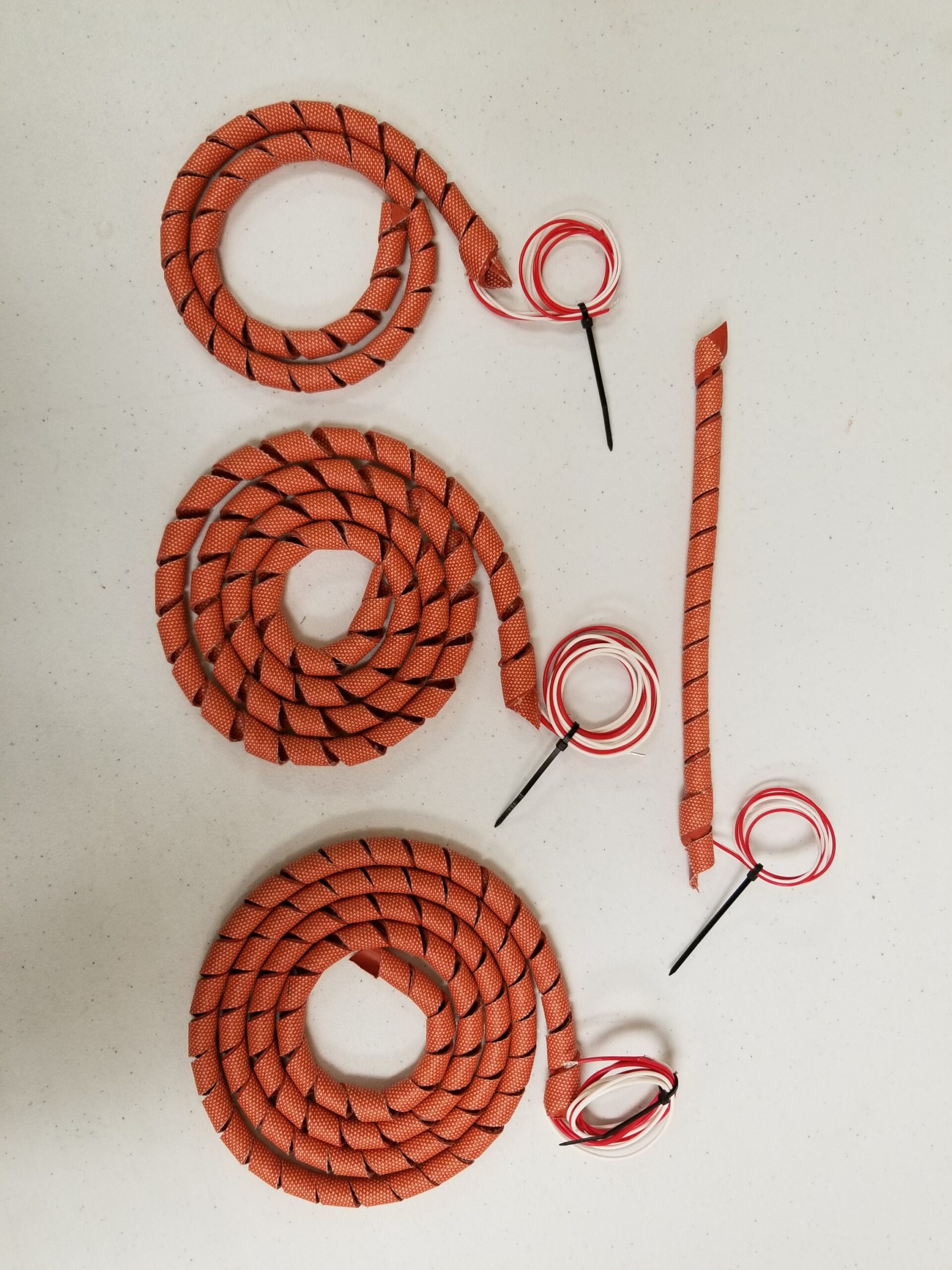

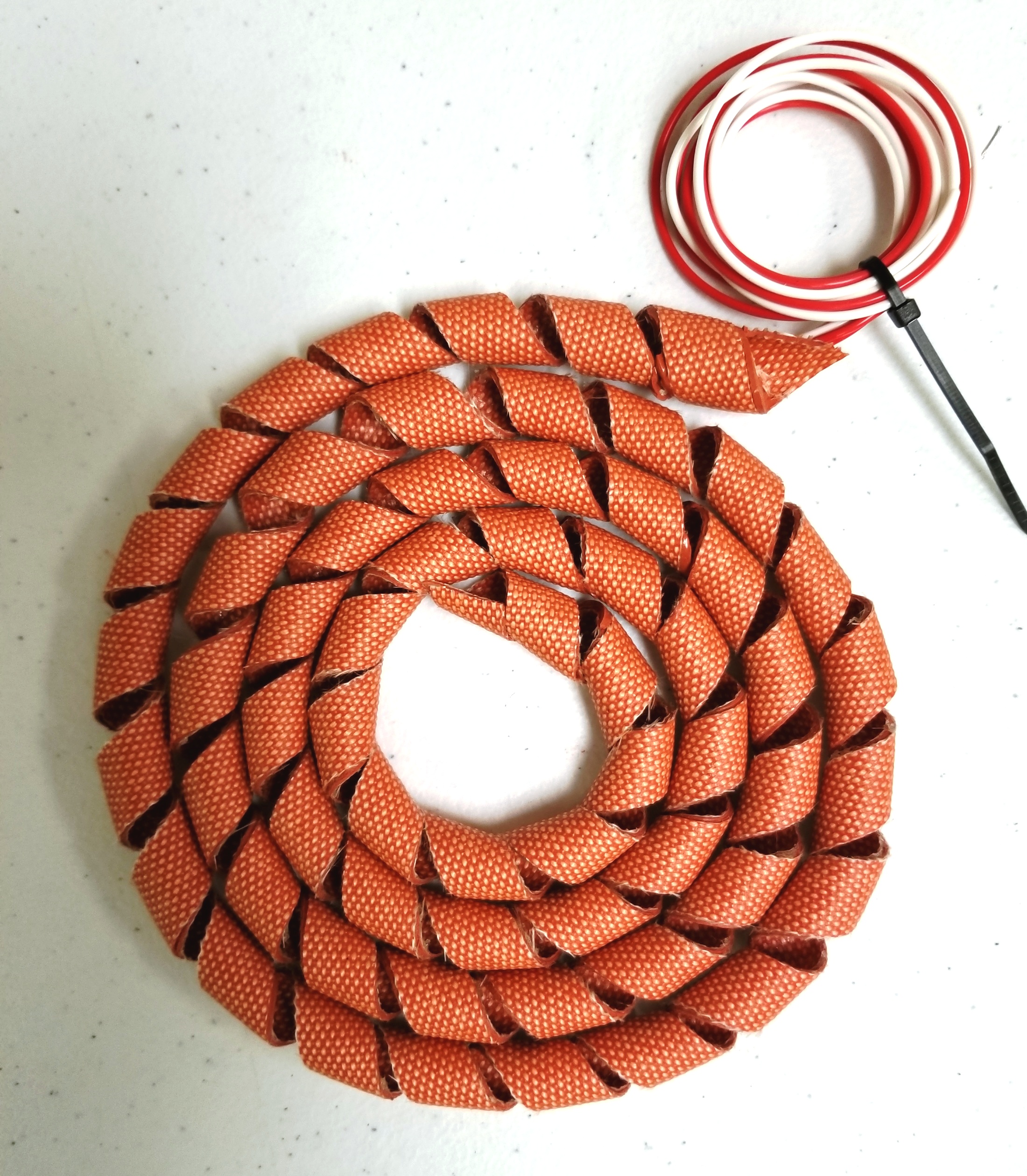

Spiral Silicone Tape

Specifications

  • Material: Calendared Reinforced Silicone rubber
  • Element: Wound Wire
  • Temperature Range: -45° to 220°C (-49° to 428°F)
  • Maximum temperature for UL® Recognition: 220°C (428°F)
  • Maximum Exposure Temperature: 260°C (500°F)
  • Wattage Range: 2.0 Watt/in2
  • Voltage Range: Up to 600V (250V max. for UL component recognition)

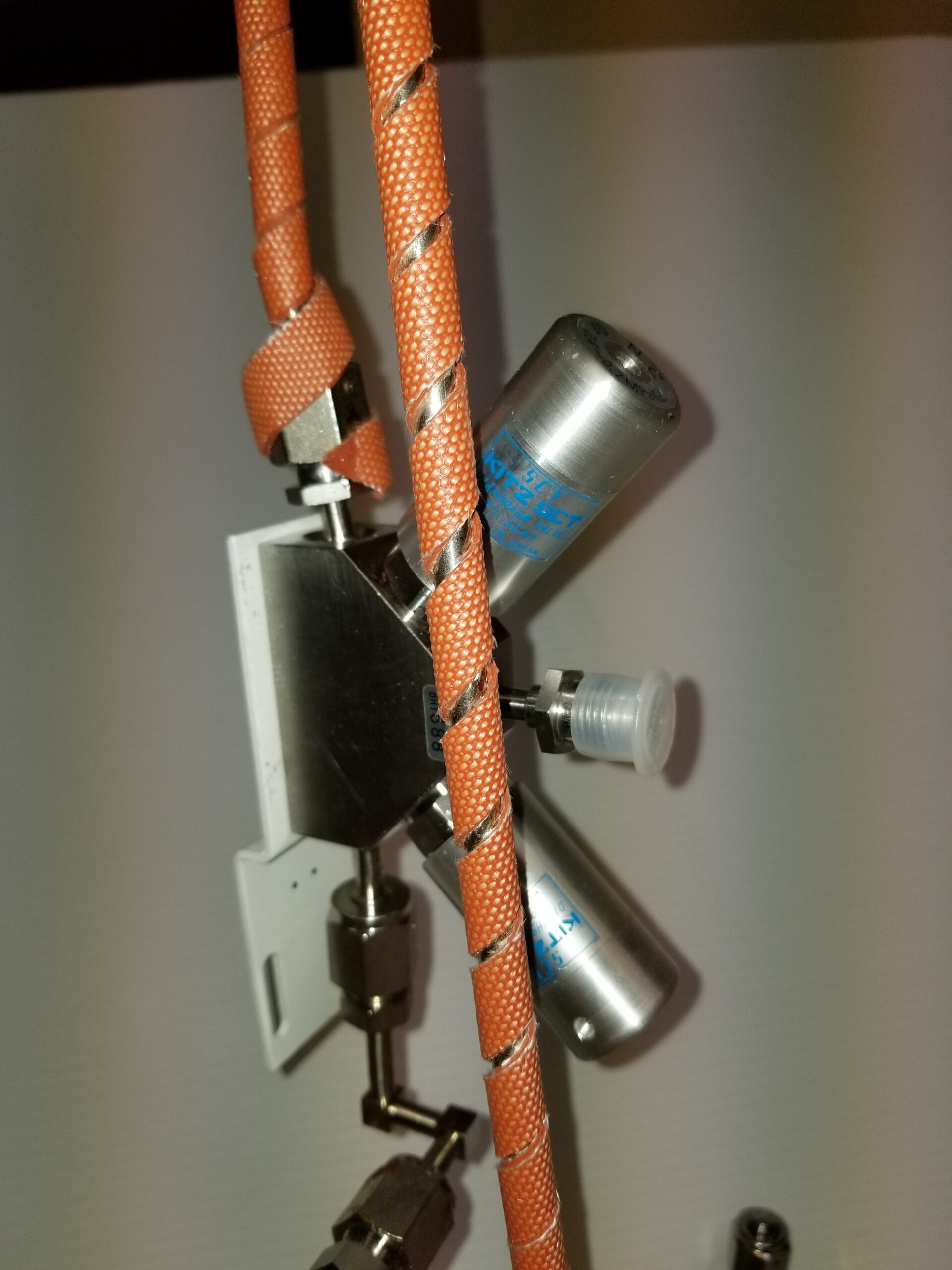

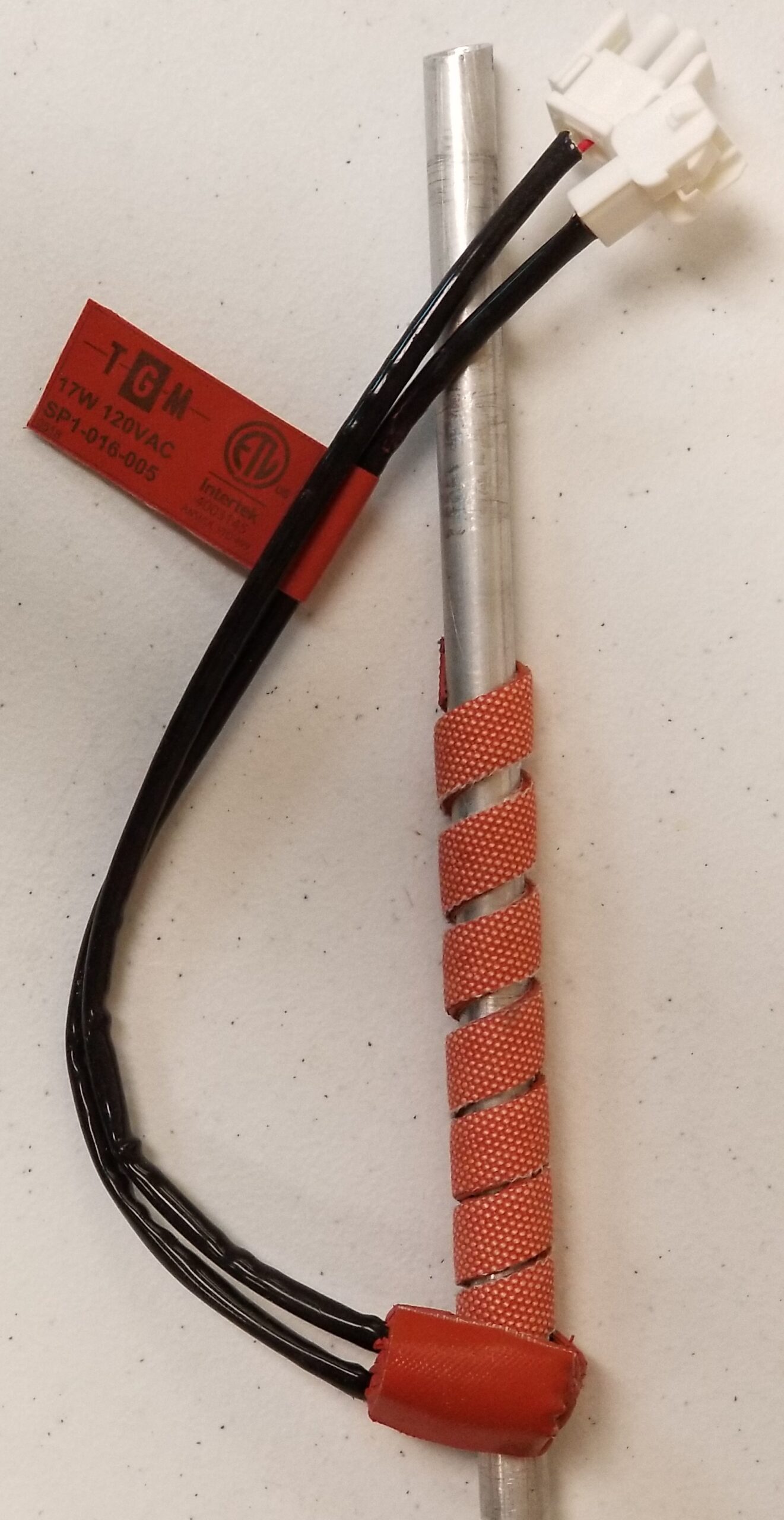

  • Size Range: 1/2” wide; Fits ¼” diameter through 5/8” diameter pipe
  • Thickness: 0.032″ to 0.080″ ± 0.003″
  • Leads: Teflon with silicone over braid
  • Standard Connection: AMP CPC Circular connectors 4-position; Size 11.
  • ETL #4003145 ANSI/UL STD 499
  • UL 1080 Lead Wire

Features

  • Chemical and moisture-resistant
  • UL 220/220 Rated Materials
  • UL Recognized components
  • AC or DC voltage
  • Thermal insulation vulcanized to the heater
  • Variable watt densities
  • Available Accessories: Controls and Sensors (100 Ω RTD, 1000 Ω RTD, and thermocouples J, K, and E)
